Description
SEE FITMENT BEFORE ORDERING

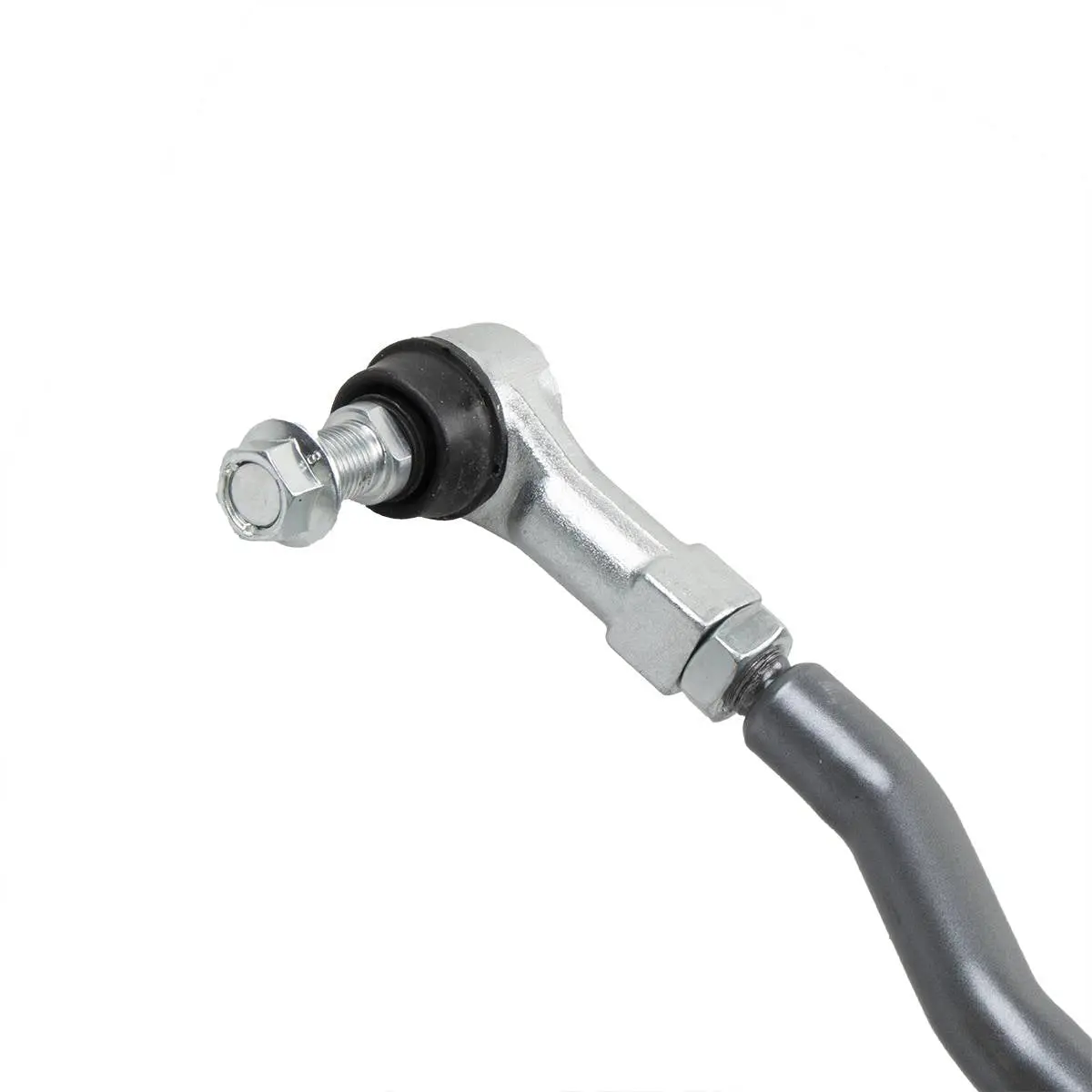

- Synergy Dodge 4×4 Heavy Duty Sway Bar Links
- Fits Dodge Ram 2006-2008 Mega Cab 1500 4×4 ONLY!
- Fits Dodge Ram 1998.5-2013 2500 4×4
- Fits Dodge Ram 1998.5-2012 3500 4×4
- Spherical bushing and sealed tie rod end provides a direct linkage to axle
- Available for 3″ and 6″ lifts
- Constructed from high quality 1020 CR Solid
- Clear zinc plated for maximum corrosion resistance
- Stem top adapter eliminates the problematic factory “pancake” bushing on the sway bar end
- 100% bolt on components assures an easy, trouble-free installation with the use of basic hand tools **
- Made in USA
**Some early model trucks require minor drilling on axle mount for installation**
Includes:
- (2) 8515 sway bar links
- (2) Sway bar link ends (sealed tie rod ends)
- (2) ½”-12 UNC jam nuts
- (2) 851501 stem top sway bar link adapter
- (2) 5/8″-18 tapered nuts
- (2) ½”-12 UNC x 3.0″ long hex head bolt GR8
- (2) ½”-12 UNC Stover nut
- (4) ½” flat washer GR8
Min/Max lengths measured from center of the lower bolt hole to the flat on the adapter:
8515-11
- Minimum Collapsed: 7 1/2″
- Maximum Extended: 8 1/2″
8515-12
- Minimum Collapsed: 10 7/16″
- Maximum Extended: 11 3/8″
| Part # | Description |
|---|---|
| 8515-11 | Synergy Dodge 3″ Lift Heavy Duty Sway Bar Links, Powdercoated |
| 8515-12 | Synergy Dodge 6″ Lift Heavy Duty Sway Bar Links, Powdercoated |
Note:
- Model year 1994-2002 trucks require Synergy Heavy Duty Steering to be installed for the Sway Bar End link to properly clear the steering linkage.
- For the 8515-11 Heavy Duty Sway Bar Links to be used on a 1998-2002 Ram, part number 4006-01 must be used!
