Wilwood Adjustable Brake Bias Valve

Description

Wilwood Bias Proportioning Valve

Wilwood Bias Proportioning Valve

Knob Style Proportioning Valve – M10 x 1

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. This adjustment lets you fine tune the front to rear braking balance by proportionally decreasing the rear brake line pressure.

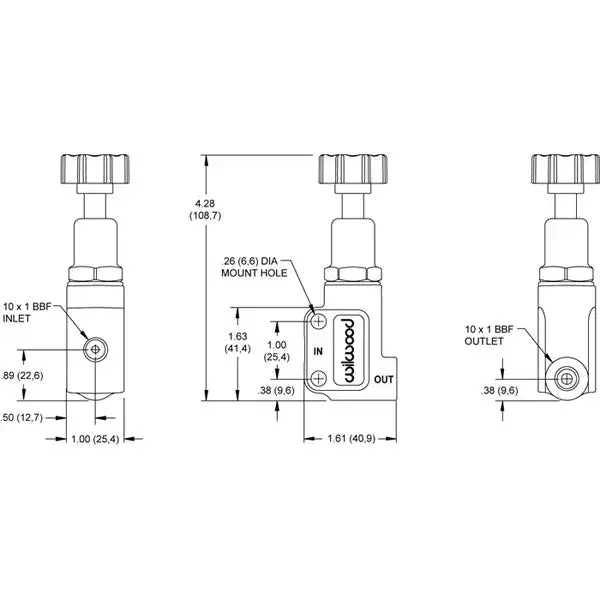

Specifications:-

Max Pressure Reduction: 57%

Inlet / Outlet Ports: M10 x 1
Mounting Hole Diameter:  6mm
Mounting Hole Spacing: 25mm
Weight: 147g
